The power and energy sector deals with equipment that defines the word “heavy.”

A single distribution transformer can weigh 2,000 to 8,000 kilograms. A drum of high-voltage cable weighs 500 to 2,000 kg. A set of switchgear panels for a substation project can occupy an entire warehouse bay before dispatch.

Storing, protecting, and retrieving this equipment safely requires a completely different approach from conventional warehouse racking.

Advance Engineering has built storage and staging rack systems for power equipment manufacturers, renewable energy project contractors, electrical utilities, and EPC (Engineering, Procurement, and Construction) companies across India. We understand the physical scale of power sector equipment, the project-based nature of the industry, and the critical importance of protecting equipment that is expensive, long-lead, and often custom-manufactured.

This page explains the types of storage challenges in the power and energy sector — and the rack-based solutions that solve them at the right scale.

The Unique Storage Challenges of the Power & Energy Sector

Equipment Is Extremely Heavy and Dimensionally Large

Power sector equipment breaks all standard warehouse dimension assumptions. Transformer cores, generator stator assemblies, large switchgear panels, and high-voltage cable drums require rack systems with load capacities and dimensions that go far beyond what a standard commercial rack manufacturer can provide.

At Advance Engineering, we design racks after receiving detailed specifications of your heaviest equipment — weight, footprint, height, centre of gravity, and lifting point locations — before engineering the rack.

Project-Based Inventory — Materials Arrive in Batches and Leave at Once

Unlike manufacturing warehouses where inventory flows continuously, power sector project stores often receive large material quantities at once (for a substation project, for example) and dispatch them all when the project mobilizes. Storage must handle maximum capacity at project peak while remaining useful for minimum inventory between projects.

Our modular rack systems allow expansion during project intake and consolidation during low-inventory periods — without buying and selling racks repeatedly.

Long Equipment Like Cables, Pipes, and Structural Steel

High-voltage cable drums, bus bar assemblies, conduit pipes, and structural steel members for power plant civil work are all long-form materials that standard shelving cannot accommodate. Cantilever racks are the standard solution for these materials.

Outdoor and Site Storage Requirements

Many power sector project stores operate in open yards or temporary site storage areas rather than enclosed warehouses. Storage racks for outdoor use require hot-dip galvanized finish (not powder coat) for corrosion resistance, and heavy base plates for compacted earth or temporary concrete pad anchoring.

Storage Rack Solutions for Power & Energy Sector

Transformer and Generator Storage Platforms

Transformers and generators cannot be stored directly on the floor — floor moisture and uneven surfaces risk damage to windings, insulation, and bushings. We manufacture:

  • Custom steel storage platforms and dunnage frames sized to transformer footprints
  • Heavy-duty temporary storage cradles for generators and alternators
  • Adjustable height frames to level transformer storage on uneven site surfaces
  • Rated load platforms from 2,000 kg to 20,000 kg (custom engineering)

All transformer storage platforms are designed in consultation with transformer manufacturers’ storage and transport requirements.

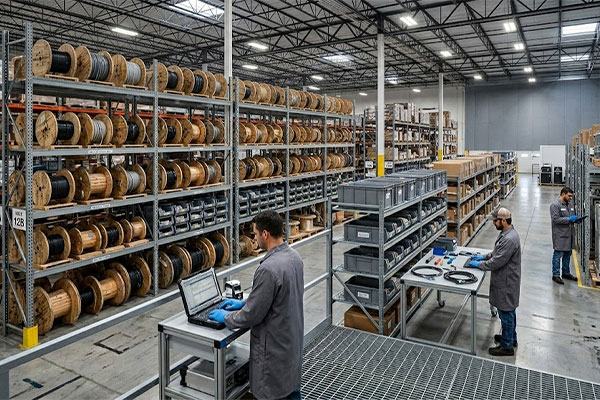

Cable Drum Storage and Dispensing Racks

High-voltage and medium-voltage cable drums are among the most commonly damaged items in project stores due to improper storage. Drums stored on their flat side (like a coin lying flat) develop oval deformation and cable internal kinks. Our cable storage solutions include:

  • A-frame cable drum racks — drums stored upright on their rim, in sets of 2–6
  • Horizontal spindle dispensing racks — drums mounted on a central spindle for motorized or manual pay-out
  • Mobile drum carriers for yard-to-trench dispatch of cable drums on site
  • Multi-drum stacking frames for maximum density cable drum storage in closed yards

Cable drum racks are designed for drum diameters from 600 mm to 2,500 mm and drum weights from 200 kg to 2,000 kg.

Switchgear and Electrical Panel Storage Racks

Switchgear panels, MCC (Motor Control Center) panels, and distribution boards are tall, relatively light, and extremely fragile to physical impact. They require:

  • Vertical storage in individual bays with divider posts preventing panel-to-panel contact
  • Soft lining on all contact surfaces to protect panel doors and side panels from scratches
  • Minimum 100 mm floor clearance to prevent base moisture exposure
  • Secure strapping points to prevent toppling in transport or during outdoor storage

Our panel storage racks are configurable for standard panel widths (400 mm, 600 mm, 800 mm, 1,000 mm, 1,200 mm) and any panel height up to 2,500 mm.

Renewable Energy Equipment Storage — Solar Panels, Inverters, and Mounting Structures

The growth of solar, wind, and hybrid energy projects has created a new storage challenge: how to handle large volumes of solar panels and mounting hardware efficiently at project staging areas.

Solar panel storage racks: Panels stored in horizontal stacks of maximum 15–20 panels per stack (as per manufacturer recommendation) on foam-padded runners. Our flat storage racks are sized for 60-cell (1,640 × 992 mm) and 72-cell (1,956 × 992 mm) panels.

Solar mounting structure storage: Aluminum and galvanized steel mounting profiles, rails, and cross-members need cantilever or pigeon-hole racks organized by profile type and project.

Inverter and balance of system (BOS) storage: String inverters, central inverters, and BOS components (cables, connectors, DC combiner boxes) need a combination of heavy shelving and bin storage.

Spare Parts Stores for Power Plants and Substations

Operating power plants maintain large inventories of critical spare parts — transformer tap changer components, insulator assemblies, protection relay modules, pump seals, motor winding sets, and more. A power plant spare parts store requires:

  • Permanent, organized shelving with a defined location code for every spare
  • Temperature and humidity controlled storage for sensitive electrical components (relays, cables, insulation materials)
  • Heavy section racks for large spare items (motor stators, pump casings)
  • Documentation-linked storage for spares that require certificates and test reports

Standards and Specifications for Power Sector Storage Racks

Power sector clients — especially government utilities and large EPC contractors — often require storage equipment to meet specific standards.

Requirement Our Capability
Material test certificate Provided for all structural steel used
Load test certificate 125% proof load test available on request
IS 2062 steel compliance Standard for all primary structural members
Hot-dip galvanizing (for outdoor use) Available per IS 4759 standard
Dimensional tolerance ± 3 mm on all fabricated members
Third-party inspection We support client-nominated TPI agencies

Power Sector Clients and Project Types We Have Served

  • Power transmission and distribution equipment manufacturers (transformers, switchgear)
  • Solar EPC contractors and module supply companies
  • State electricity boards and power utilities (spare parts stores)
  • Diesel generator and UPS manufacturers
  • Wind turbine component suppliers
  • Underground cabling contractors (cable drum management)
  • Power plant O&M (Operations and Maintenance) contractors

Frequently Asked Questions — Power & Energy Industry Storage Racks

Q1. How do you store large power transformers safely in a warehouse?

Power transformers above 500 kVA should be stored on custom-designed dunnage frames or storage platforms that distribute the transformer weight evenly and maintain a minimum 150–200 mm floor clearance. The platform must be designed with the specific transformer footprint and weight in mind — a one-size-fits-all approach does not work here. We design transformer storage platforms based on the transformer weight, base dimensions, and any OEM-specified storage guidelines provided by the transformer manufacturer.

Q2. What is the best way to store high-voltage cable drums to prevent cable damage?

Cable drums must always be stored upright — standing on the drum rim, not lying flat on the barrel. When drums are stored flat, gravity deforms the wound cable into an oval shape and creates kinks that cause insulation stress at the deformation points. Our A-frame cable drum racks hold drums in the correct upright orientation, prevent drums from rolling, and allow visual inspection of cable end caps and drum condition without moving the drum.

Q3. Can you supply outdoor yard storage racks for our project site?

Yes. For outdoor project sites, we supply hot-dip galvanized racks and storage frames that are corrosion-resistant for 15–20 years without maintenance painting. We also design heavy base plates suitable for anchoring into compacted earth, temporary concrete pads, or PCC slabs. If the site is in a coastal or high-humidity environment, we specify higher zinc coating weights for extended corrosion resistance.

Q4. How do you store solar panels in bulk at a staging area without damaging them?

Solar panels are stored in horizontal stacks on padded runners, with a maximum stack height as specified by the panel manufacturer (typically 15–20 panels). Never stack modules with glass face down, never mix portrait and landscape orientation in the same stack, and always use foam padding between module and runner contact points. Our panel storage racks are designed with these requirements built in — padded horizontal runners at 500–600 mm spacing, sized for the module dimensions you are using.

Q5. We need racks for a power plant spare parts room that meets ISO 55001 asset management requirements. Can you help?

Yes. For power plant spare parts stores governed by ISO 55001 or similar asset management standards, we design rack systems with permanent location coding (Row-Bay-Level), integrated label frames for asset tags and spare part records, weight-rated shelving, and the ability to accommodate future inspection or audit access. We also provide a complete rack location register (Excel format) for integration with your CMMS (Computerized Maintenance Management System).

Q6. Can you make storage racks for switchgear panels that are already assembled and awaiting dispatch?

Yes. Our finished switchgear panel storage racks are designed with panel-width-specific bays, soft material liners on all contact surfaces, and anti-topple provisions. We can also supply temporary panel transit frames for panels that will be relocated to site within a short period. For large panels (above 2,000 kg), we engineer customized storage cradles after reviewing the panel drawings.
